VANTO Operating System

The Power in Surgery

The operating system with transferable table tops VANTO was born in OPT in 2008 and summarizes all the technology of 90 years of technological and human experience. The operating system VANTO with transferable table tops is made up of three fundamental elements: column, table top and trolley (longitudinal or lateral) for moving the column/ the table top. This system has been conceived and designed to satisfy the needs of multidisciplinary operating rooms.

The universal system Vanto satisfies the needs of modern operating theatres and thanks to the wide and complete range of accessories and components, this table offers the possibility of satisfying with only one table top all the needs of every surgery specialty in an OR.

Columns

Mobile column

It is the heart of the operating table, controls all movements and allows to memorize and recall automatically all the main recurring operating positions. Managed by a microprocessor and mounted on an ultra-flat base of minimum thickness, it is made of top quality stainless steel and designed to occupy the minimal amount of space, to facilitate every surgeon’s action and his/her assistants and to ensure the maximum stability.

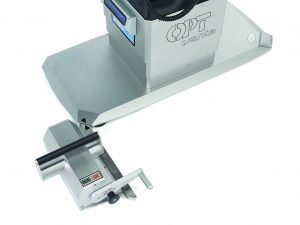

Mobile plus column

VANTO Plus has two wheels integrated to the base of the column which allow to transfer the table without using the standard trolley. An auxiliary removable mini trolley can be used for intraoperative transfers or minor adjustments before, during or after the surgery.

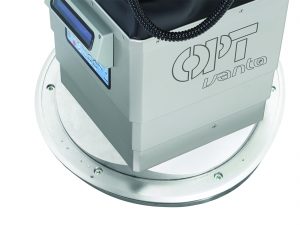

Stationary column

Stationary fixed column, rotating. The column is controlled by a microprocessor and is mounted on a support plate in machined brass, which is anchored in the screed of the operating theatre. The column is complete with OR gaskets and makes its rotation without any obstruction, with an electronic locking device for any position. Complete with control panel with a display on the column.

Table Tops

The sections which compose the table top have all radiolucent, antistatic, anti-decubitus and ergonomically shaped cushions and have on both sides and on their entire length stainless steel rails (25*10 mm) to hook the specialistic accessories. They adapt easily to any surgical specialty included traumatology. Moreover the sections are removable and completely modular (i.e. the elongation plates can be inserted indifferently from the head side or from the leg side according to the surgical needs).

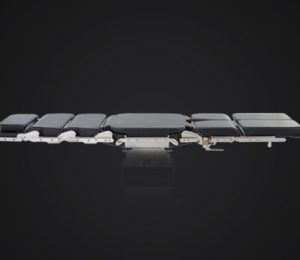

UNIVERSAL TABLE TOP

The table top of the VANTO system has been designed to sustain patients of every size and at the same time without causing trouble to the OR operators during procedures. It is highly ergonomic thanks to the exceptional modularity and flexibility of its sections.

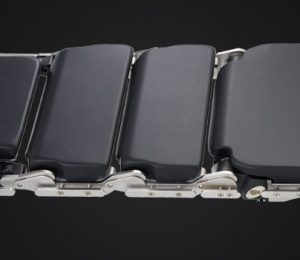

UNIVERSAL TABLE TOP “LIGHT”

The features of this table top are similar to the UNIVERSAL TABLE TOP but in it’s “light” version. It is highly ergonomic thanks to the exceptional modularity and flexibility of its sections.

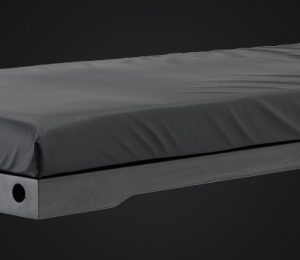

VASCULAR CARBON FIBRE TABLE TOP “X”

The vascular X table top has been designed to satisfy for all surgical specialties where the main required feature is radiotrasparency. The table top has a longitudinal slide of 700mm. It is complete with antistatic, radiolucent, electro-conductive cushion whose height is 80 mm.

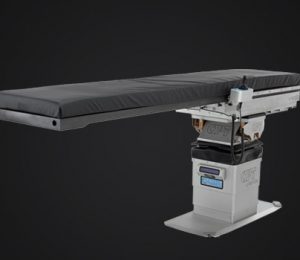

VASCULAR CARBON FIBRE TABLE TOP “XY”

The table top has a longitudinal slide of 700 mm and bilateral slide of 105 mm, both movements can be performed simultaneously. It has been designed to satisfy for all surgical specialties where the main required feature is radiotrasparency. It is complete with antistatic, radiolucent, electro-conductive cushion whose height is 80 mm.

Trolleys

OPT is the only company in the world that can offer longitudinal (head side and foot side insertion) and lateral trolleys (right and left side insertion) to extract only the table top (with or without patient) and/or to move the entire system (column+table top).

Main feature of the VANTO system is the possibility of choosing a lateral trolley, that allows to position the table top without moving all the other surgical equipment (which is particularly useful, above all in ortho-traumatological surgery).

Longitudinal trolley

Available in 3 versions:

standard trolley
trolley with Trendelenburg and reverse Trendelenburg
trolley with adjustable height with Trendelenburg and reverse Trendelenburg and optional 5th wheel

Lateral trolley

Available in 3 versions:

standard trolley with integrated 5th wheel
trolley with Trendelenburg and reverse Trendelenburg and integrated 5th wheel
trolley with adjustable height with Trendelenburg and reverse Trendelenburg and integrated 5th wheel

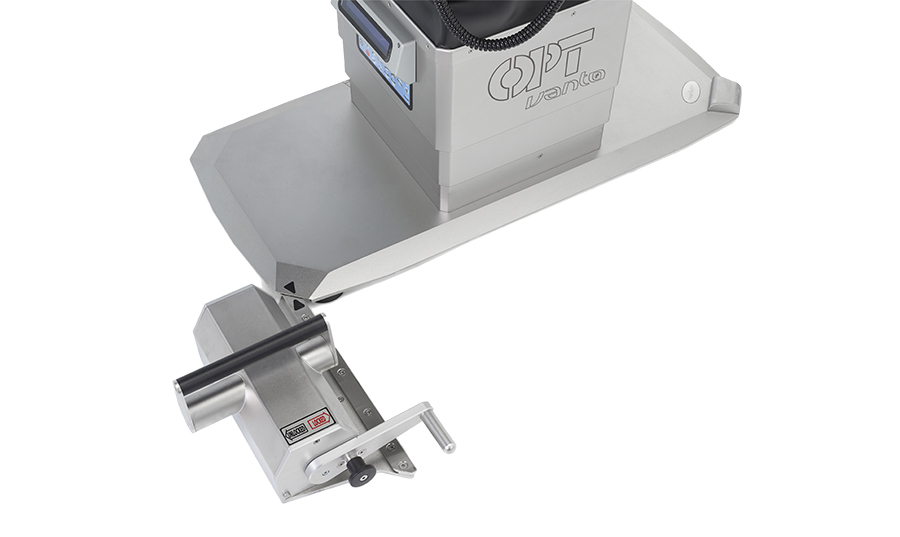

Mini Trolley VANTO

An optional Mini trolley is used for the VANTO Plus column to provide small movements in the operating theater. It can move the column and/or complete system without using external trolleys or units.

ELECTRO POLISHING

The Vanto system is made of stainless steel and high quality materials treated on the surface with state-of-the-art procedures such as electro polishing for stainless steel in order to increase the resistance to oxidation, ensuring a longer table lifetime and a higher resistance to antibacterial products.

ACCESS TO THE COLOUMN FROM FOUR SIDES

Access to the column from all four sides with lateral trolleys (indifferently from the left or the right side) and longitudinal trolleys (indifferently from the left or the right side), for moving only the table top and/or the entire system table top/column.

ULTRA-FLAT BASE

The column is mounted on an ultra-flat base of minimum thickness and bevelled edges able to ensure the maximum stability of the entire system and a great practicality. The base also avoids collisions against the surgeon, the operating theatre personnel and other devices (brilliance amplifier, etc..)

ALL INCLUDED COLUMN

The column contains all the electronic and mechanical components to activate the system, charger included.

MODULARITY AND FLEXIBILITY

The table top with central symmetrical and modular section, made up of up to 8 sections, allows to easily and quickly change the configuration according to the required surgical procedure. Thanks to the wide set of dedicated accessories, the operating table Vanto can be used effectively in every modern surgical specialty by using the same universal table top.

SINGLE HOOK FOR THE TABLE TOP SECTIONS

Unique fast locking/unlocking system for table top sections which is identical for all sections, hygienic, easy to lock/unlock with a single strong movement.

ANTI-COLLISION SYSTEM

Unique table top with security anti-collision system against the table itself and the floor.

INTEGRABILITY- INTEGRATED OPERATING ROOMS

The operating system Vanto can be integrated with the main control systems for Integrated OR.

CONTROL UNIT INTEGRATED TO THE COLUMN

Unique control unit integrated to the column with always-visible display and with the possibility of making all electro-mechanical movements of the column and of the table top.

POSITION MEMORISATION

Vanto allows to memorise the several positions of the operating system that can be recalled any time by using the remote control.

BARIATRIC SURGERY

The exceptional weight capacity of the Vanto system (380 kg, 360 kg patient’s weight plus 20 kg accessories) allows to operate on patients up to 360 kg without using a dedicated table top.

NOISELESSNESS AND FLUIDITY OF MOVEMENTS

The operating system Vanto, thanks to its completely electro-mechanical movements, is extremely noiseless during use.

MOVEMENTS

The operating system OPT VANTO has 12 electro-mechanical movements which can be done simultaneously. The use of brushless motors (4 in the column and 5 in the table top) ensures a silent, safe and reliable management of all movements:

Height variation (without cushions): 600-1.100 mm
Longitudinal inclination (Trendel-reverse Trendel): ± 56°
Bilateral tilt: ± 35°
Upper back section adjustement: ± 60° (with optional electric elongation plate)
Lower back section adjustement: + 90°/- 50°
Thorax splitting: + 90°/- 50°
Lumbar splitting: + 90°/- 50°
Leg section adjustement: + 90°/- 90°(independently to the right or to the left or together)
Longitudinal table top translation: mm 475 (entirely electro-mechanical)
Flex
Reflex
Auto levelling

Moreover the VANTO system has the following manual movements:

Head section inclination: + 53°/- 53°
Upper back section inclination: + 60°/- 90° (with optional tiltable plate)
Leg section spread: 180°

GENERAL FEATURES

Maximum load capacity: 453 kg (1000 lb)

CUSHIONS

The cushions of the table top are in soft, radiolucent, antistatic and anti-decubitus material, which is ergonomically shaped. A thickness of about 60 mm allows a comfortable patient position even during long surgical procedures. It is possible to choose viscoelastic cushions with a thickness of at least 80 mm, with anti-decubitus and comfort features and easily removable. All cushions of the table top VANTO and of all its sections, as well as the accessories, are latex free.

RADIOTRASPARENCY

All the table tops of the VANTO system are radiolucent on their entire length, without any shadow zone and allow a functional use of the image amplifier.

ERGONOMICS AND PRACTICALITY

The column of the VANTO system is assembled on a flat base with minimum thickness and bevelled edges to ensure maximum stability to the entire system and great ease of use. It also offers to the operators a perfect access to the surgical site and avoids collisions against image intensifier, foot switches, service trolleys, etc..

CLEANING AND SANIFICATION

In the column there is the “CLEAN” control which raises the column without table top up to its maximum height and allows an easy cleaning of all areas. The support base, completely flat, facilitates the surgeon’s access to the area and allows the personnel a quick and effective cleaning. The table top cushions are antistatic, radiolucent, electro conductive and can be easily cleaned and sanified.

CONTROL UNITS:

The operating system VANTO can be moved thanks to the following control units:

Wireless remote controls with LCD touch screen display
integrated control unit complete with graphic display
I.R. backlit remote control
wired remote control
foot switch

ACCESSORIES

The operating system VANTO has an extremely wide set of accessories that make it suitable for satisfying the needs of every modern surgical specialty:
